Box Header for ribbon cable - 26 pin 2x13 - J22 Williams 9-11

Box Header for ribbon cable - 26 pin 2x13 - J22 Williams 9-11

$2.99 USD
$2.99 USD
Sale Sold out
Shipping calculated at checkout.
No more offset ribbon cable installation!

An irony of installing the ribbon cable, is your view is blocked as you try to line up the pin headers.  It is easy to off-set the row.  Not that this (usually) causes damage, but it doesn't work either.

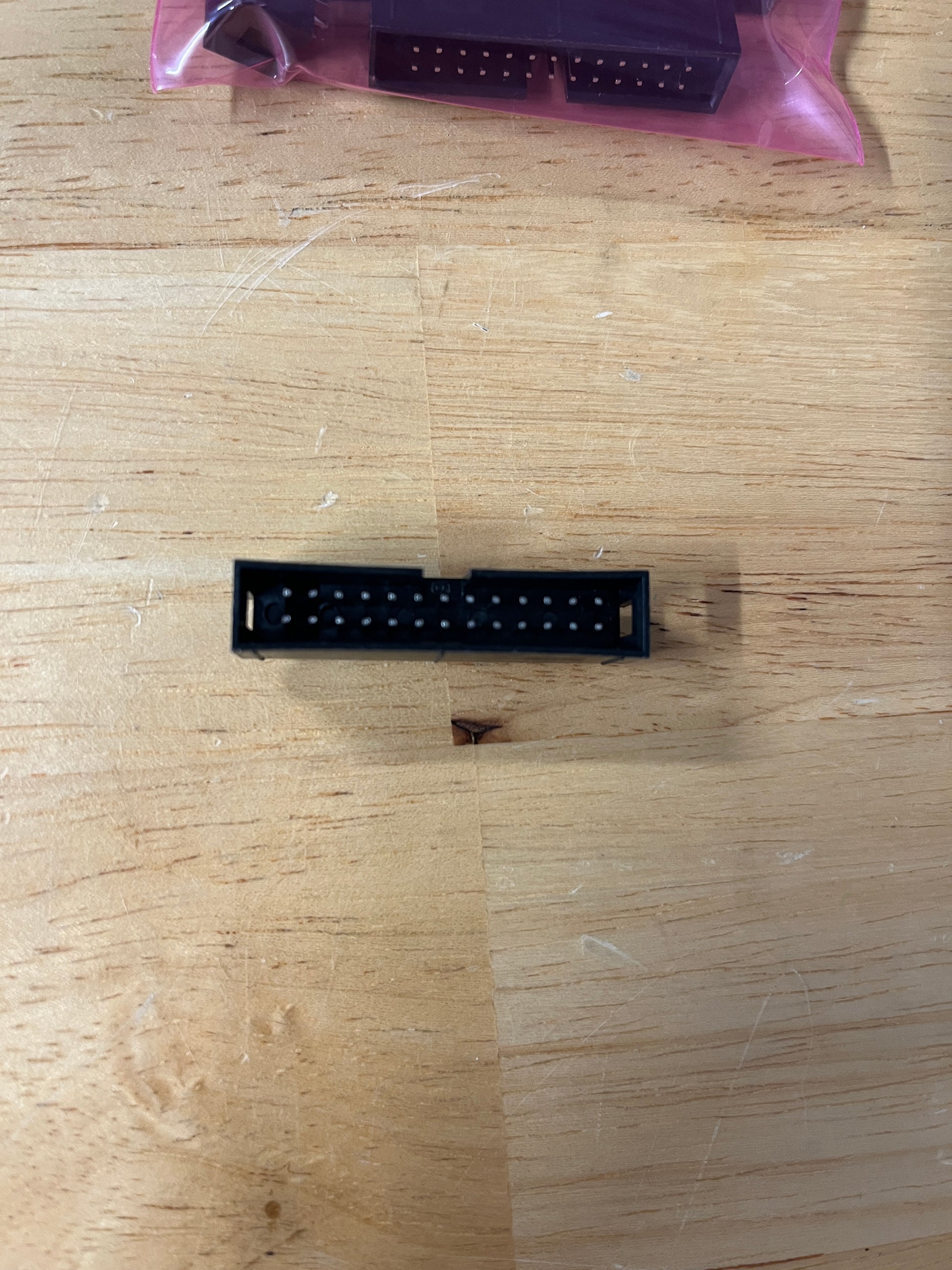

26-pin shrouded box header is designed for secure and reliable board-to-wire connections. It is a standard male IDC (Insulation Displacement Connector) socket commonly used in a variety of electronic applications, including JTAG and ISP interfaces. The shrouded design provides protection for the pins and ensures proper alignment when mating with a female ribbon cable connector

Key Specifications

Pin Configuration: 26-pin (2x13) dual-row arrangement.
  • Pitch: Standard 2.54mm (0.1") spacing, compatible with most prototyping boards and ribbon cables.
  • Orientation: Available in Right Angle (as shown in the image) and Straight through-hole mounting styles.
  • Materials: Durable glass-filled polyester (UL94V-0) insulation with high-conductivity brass pins.
  • Pin Plating: Gold or tin over nickel for superior corrosion resistance and signal integrity.
  • Features: Includes a central keying slot to prevent incorrect mating and ensure a polarized connection.
  • Operating Temperature: Rated for use in environments ranging from -40 to 105C, or 221F

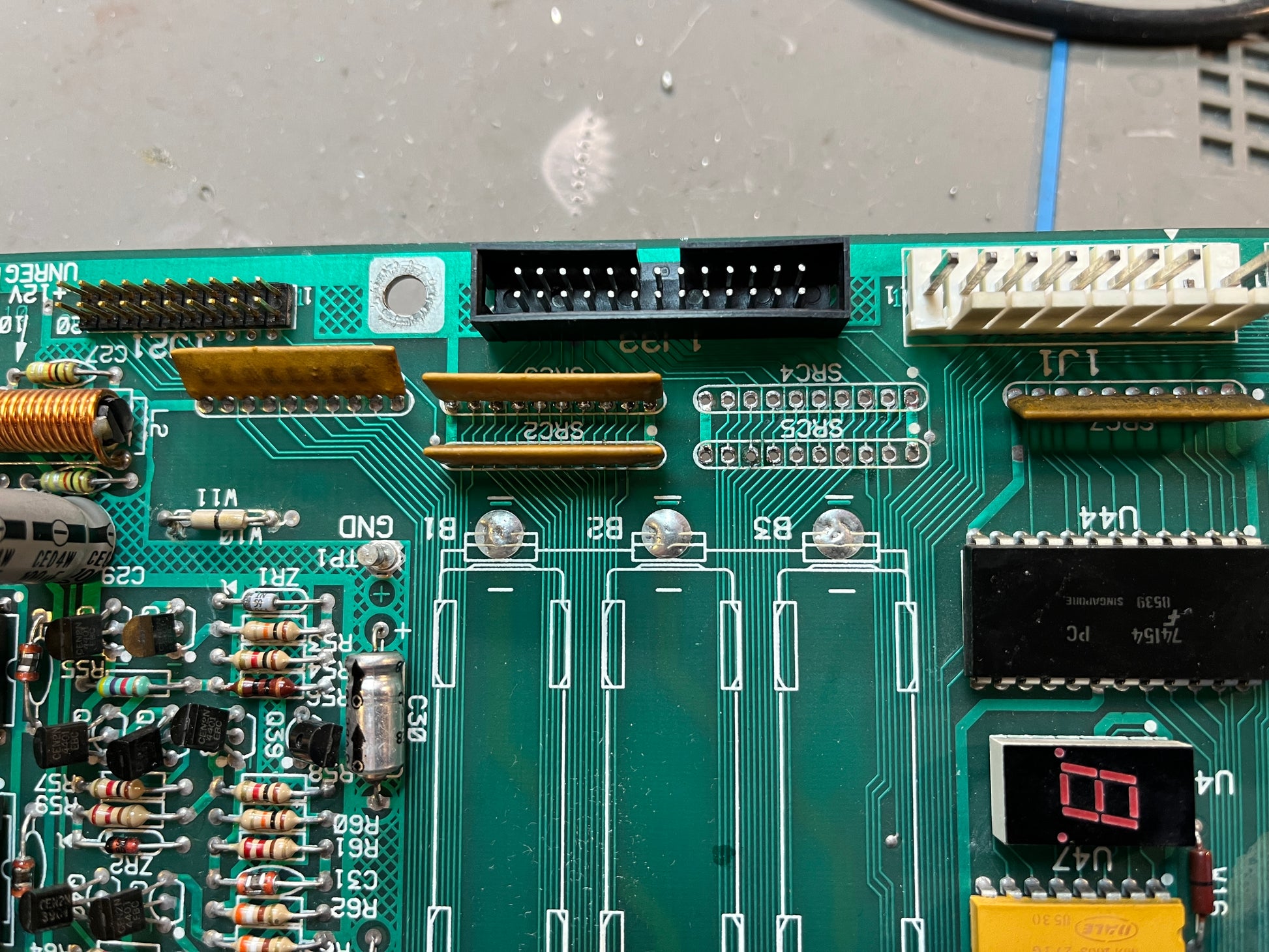

Replaces several double-row pin headers in Williams and Data East pinball MPU and display boards.  Including, but not limited to:

  • Williams MPU J22
  • Williams D-10877, Headers J8, J10, J12
  • Data East MPU CN22
