Williams System 9–11 & Data East Special Solenoid Switch Tester — J18/C18 Diagnostic Tool

Williams System 9–11 & Data East Special Solenoid Switch Tester — J18/C18 Diagnostic Tool

Regular price $24.00 USD
Regular price Sale price $24.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Description:

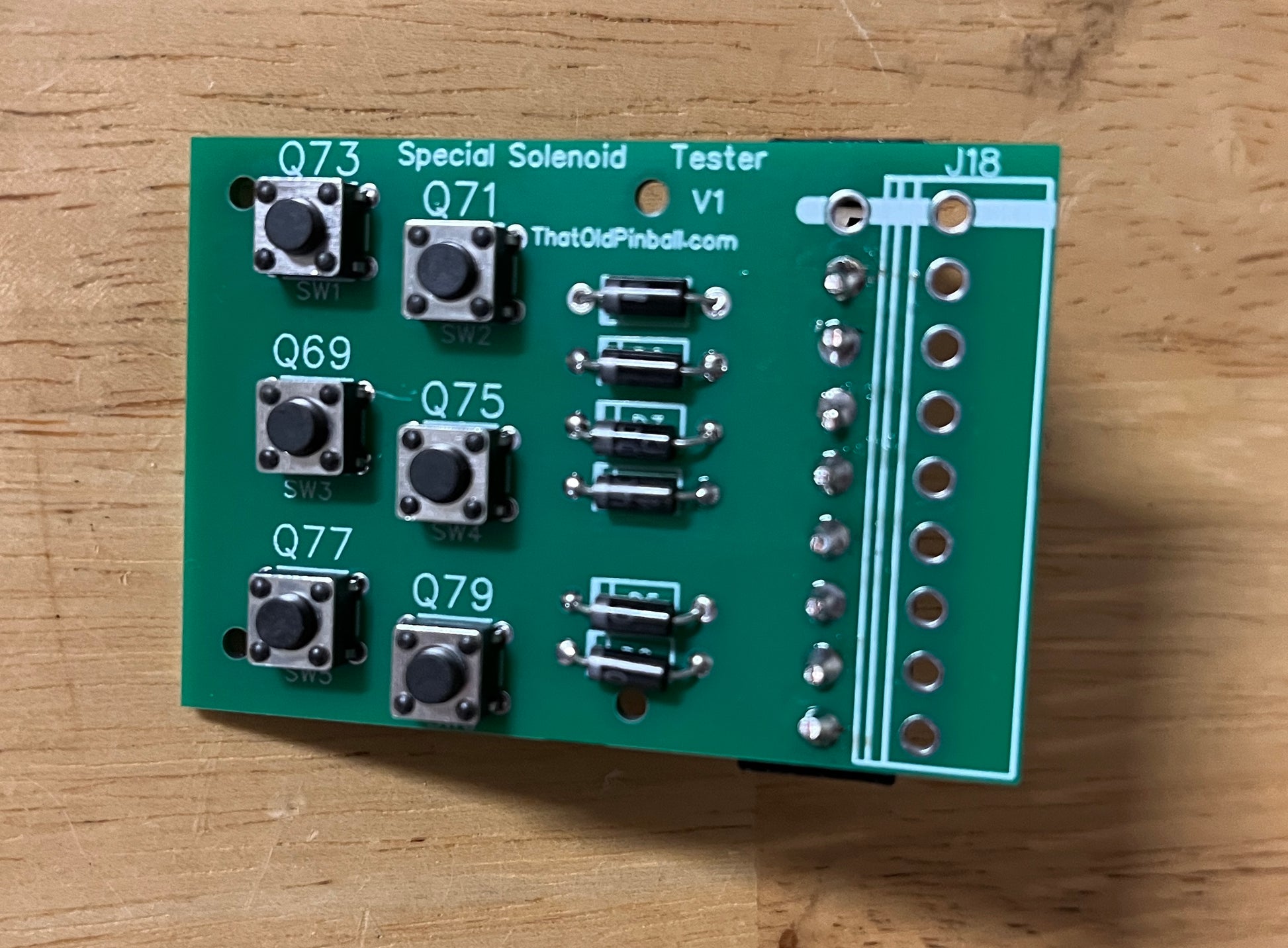

Test and manually fire Special Solenoids on Williams System 9–11 and Data East pinball machines without pulling the playfield apart or probing live connectors. This tester plugs directly into the J18 header (C18 on Data East boards) in place of the Special Solenoid harness, giving you six independent push-buttons to manually energize each solenoid output and confirm it's wired and switching correctly — whether you're chasing a dead knocker, a non-firing special-solenoid-driven feature, or just confirming driver board outputs before reinstalling the harness.

Works in both normal gameplay and diagnostic/Switch Test mode, so you can isolate whether a problem is in the driver circuitry, the harness, or the mechanism itself.

How to use it:

  1. Pull the J18 (C18 on Data East) connector from the driver board.

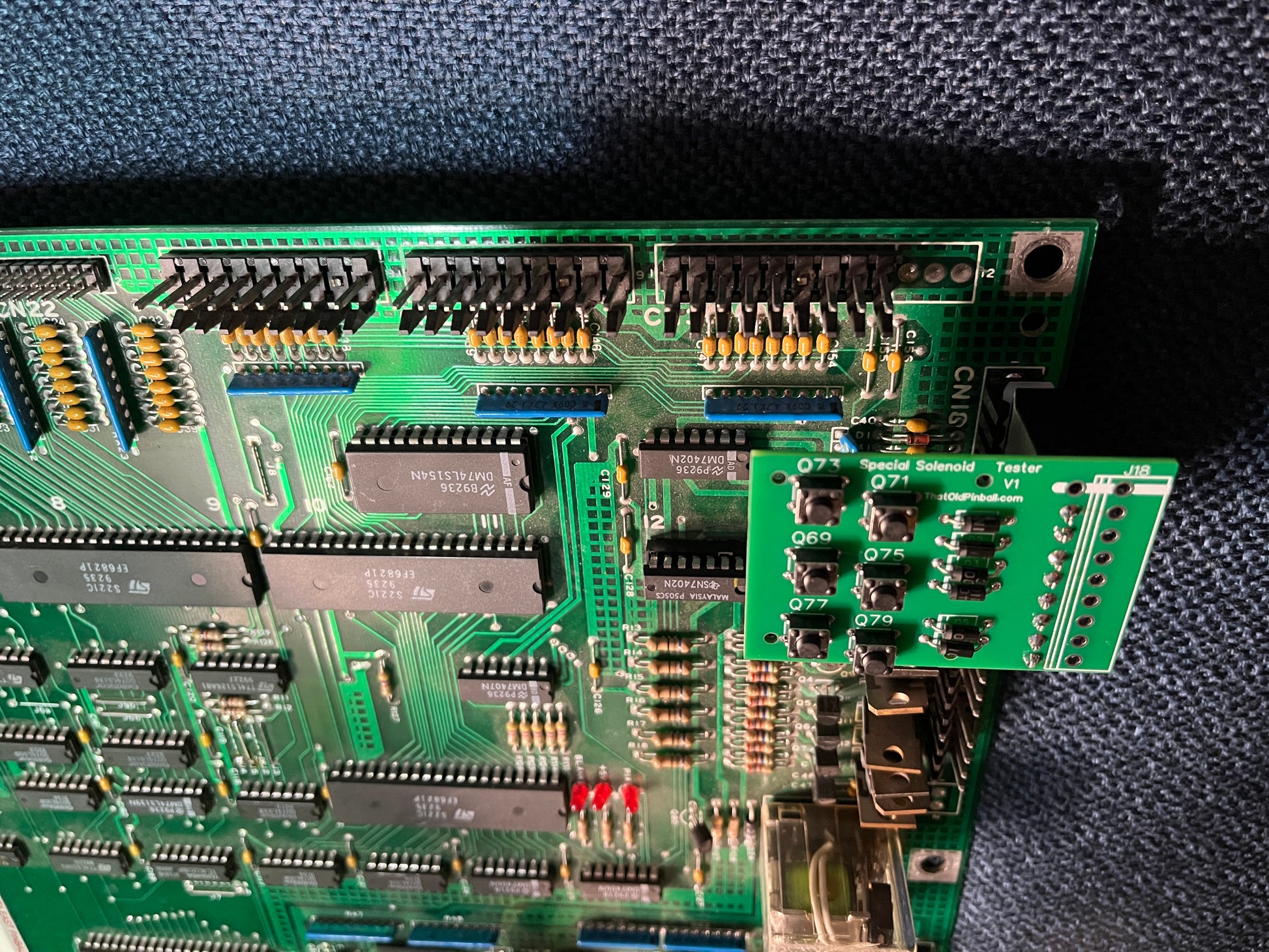

  2. Plug the Special Solenoid Switch Tester onto the J18/C18 header in its place.
  3. Press a button to manually energize that Special Solenoid output — works in-game or in diagnostic/Switch Test mode.

Important: The coil stays energized for as long as the button is held down. Don't hold the button — press and release. Holding a solenoid energized risks overheating the coil or driver.

Compatible with: Williams System 9 and 11; Data East (via the equivalent C18 header). Williams never produced a System 10 — System 9 was followed directly by System 11 — so "System 9–11" is the hobby's conventional shorthand for the era, not a literal three-system list.

Looking for playfield-level harness testing instead of Special Solenoid outputs specifically? See our Switch Matrix Harness Tester.

See it in action: Special Solenoid Tester Demo

SKU: SST-SYS911
