Solenoid Indicator / Tester / Fuse board - Williams System 3-11, Data East, Sega

This is an extremely versatile tool for testing and/or protecting pinball circuits where the solenoids connect to the MPU / Driver board with a 9-pin, .156" pitch molex connector.  Commonly found on Williams 3-11, Data East, Sega, and some others.

For use as a Fuse Board:  Populate the appropriate fuse holders.  Note:  If not using as a fuse board, Jumpers SJ1-SJ9 will need to be closed.

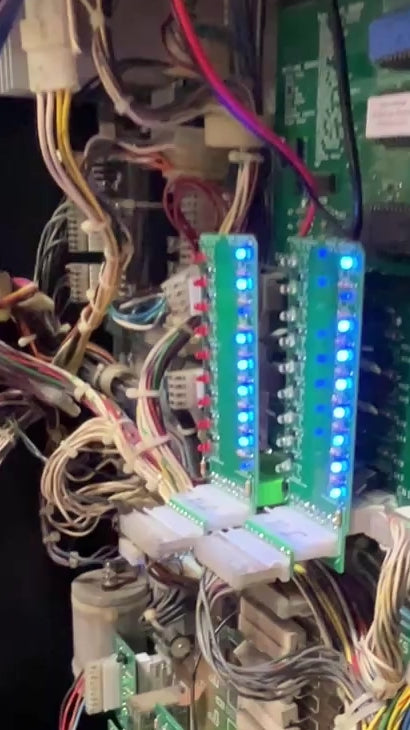

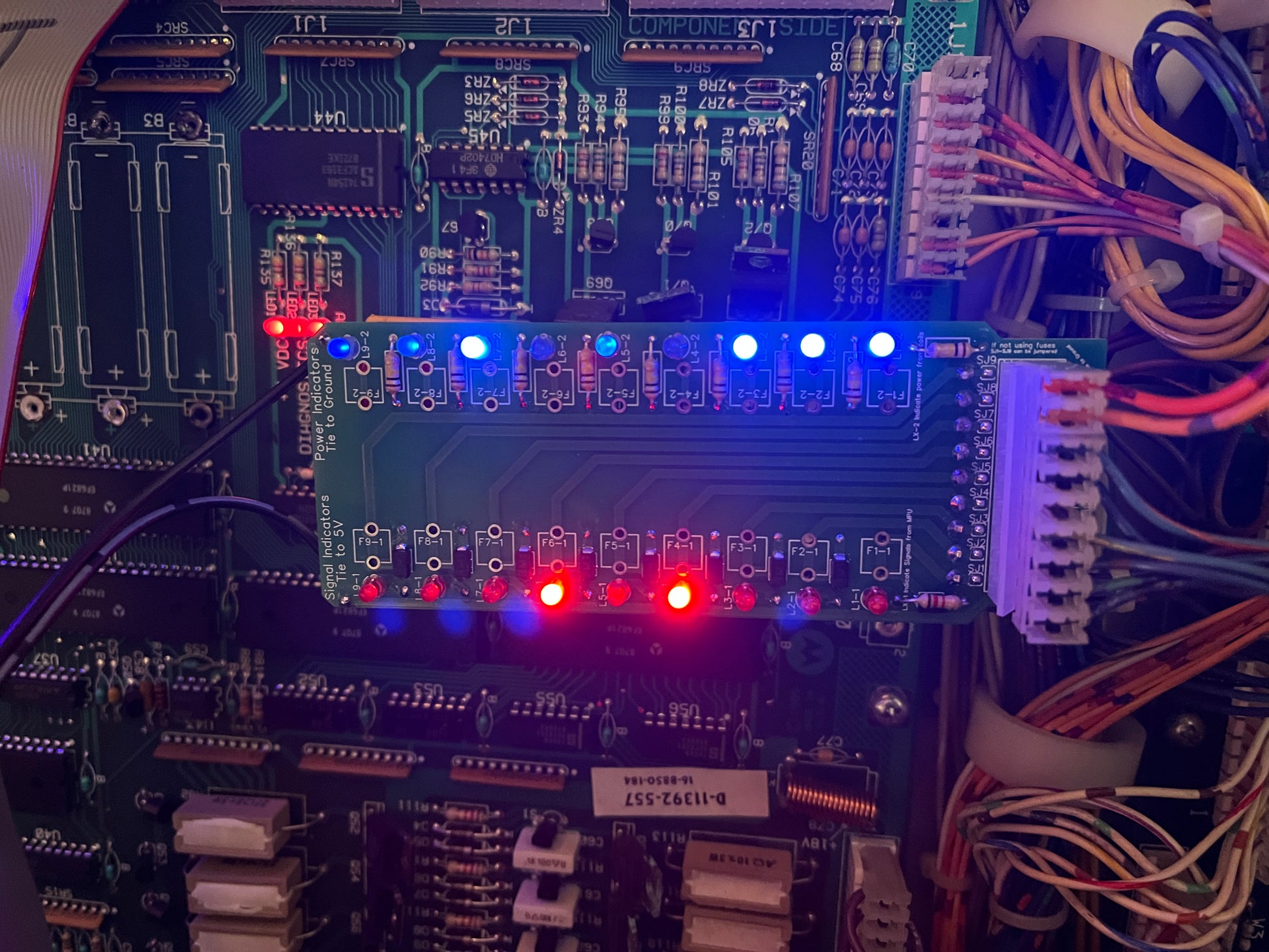

For Testing the MPU Solenoid Signals:  Connect to the header in question, and attach 5v to the Signal Indicators 5v connector point.  An active solenoid signal will light the corresponding red LED.

For testing coil power:  Connect to the header in question and attach ground to the Power Indicators Ground point.

This board comes standard with a 9-pin molex header.  If installing permanently on a particular position, clip the appropriate pin - Pin 2 for J11 and Pin 3 for J12 (pin 5 for J19, if you want to use it there).  If you are using this as a testing board, not dedicated to a certain position, a screw header can be installed, and 9-position pin strips can be provided.

Description of the variants:

• Standard board.  Populated with the LEDs, and associated components.  Also will have a standard 9-pin, .156" header.  The "Key" pin will have to be clipped when used in circuit.
• Pigtail power cord.  Female 5.5mm barrel connector.  Couples well with the Breakout Header Board with male pigtail connector.  Williams 9-11, Data East Power Breakout Header – That Old Pinball
• Fuse Clips.  All nine positions will populated with fuse clips, and the SJ jumpers will be left open.  Fuses not included.
• Screw Header.  Nine position, .156" screw header.  Also included, three 9-position .156" pin headers with the pins removed on positions 2, 3 and 5.
• All Options.  Fully populated with all options.
• Bare Board.  Completely unpopulated, if you just want to do your own thing.
